Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width

Name: Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width
Brand: Feixiang
Price: 1 USD

Quality Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width for sale

Brand Name : Feixiang

Model Number : FX980

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width

size : 7200*1350*1250mm

Weight : 6.3tons

Control : PLC computer with different language

Speed : 10m/min

Material : GI,PPGI.AL

Contact Now

Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width

1. Description

Shutter Door Sheet is widely used in the shop, hotel , bank etc building, Because it is easy open and closed , Also very easy to install, For fit this market, we manufactured the Shutter Door Roll Forming Machine. Shutter door panel has many types, here I will take random drawing and type for your reference.

2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:1200mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

3. Machine composition

Name	SET	Use TO
5 T Manual decoiler	1 set	Loading the coil
Main forming machine and cutter	1 set	12 stations forming the shape.Cutting the length as request.
PLC control system	1set	1.Language as request 2.Text and touch screen for chose 3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump	1 set	Make coolling as request
Product stand	1 set	Stand finishing product
Remark	All equipment can order as customer’s request

4. Main parameters

Model number	Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width
Rolled material	0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1200mm
Feeding width	980mm
Forming steps	15 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	80mm
Main motor power	5.5 kw
Pump power	4 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine, 1 set of computer control cabinet, 1 set of hydraulic System,1 set of cutting mechanism, 1 set of counter,1 set of output table
Payment terms	cash,T/T,L/C.
Delivery time	30 working days

Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width

Product Tags:

rolling shutter strip making machine

garage door roll forming machine

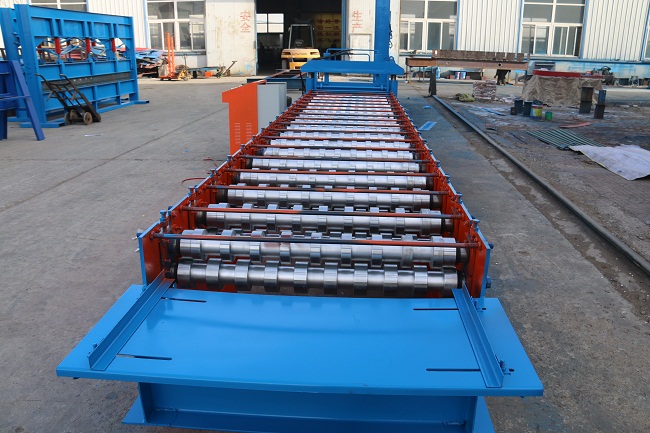

Steel Metal Windows Roller Shutter Door Roll Forming Machine With 1200mm Feeding Width Images
