Colored Roofing Sheet Roll Forming Machine , Glazed Tile Making Machine

Name: Colored Roofing Sheet Roll Forming Machine Glazed Tile Making Machine
Brand: Feixiang
Price: 1 USD

Quality Colored Roofing Sheet Roll Forming Machine , Glazed Tile Making Machine for sale

Brand Name : Feixiang

Model Number : FX1000

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : roof panel roll forming machine

size : 7500*1350*1250mm

Weight : 5.2tons

Control : PLC computer with different language

Speed : 2-5m/min

Material : GI,PPGI.AL

Contact Now

Manufacturing Colored Glazed Steel Roof Clay Tile Double Roll Forming Making Panel Machine

General information for the Production Line Of Glazed Tile Machine

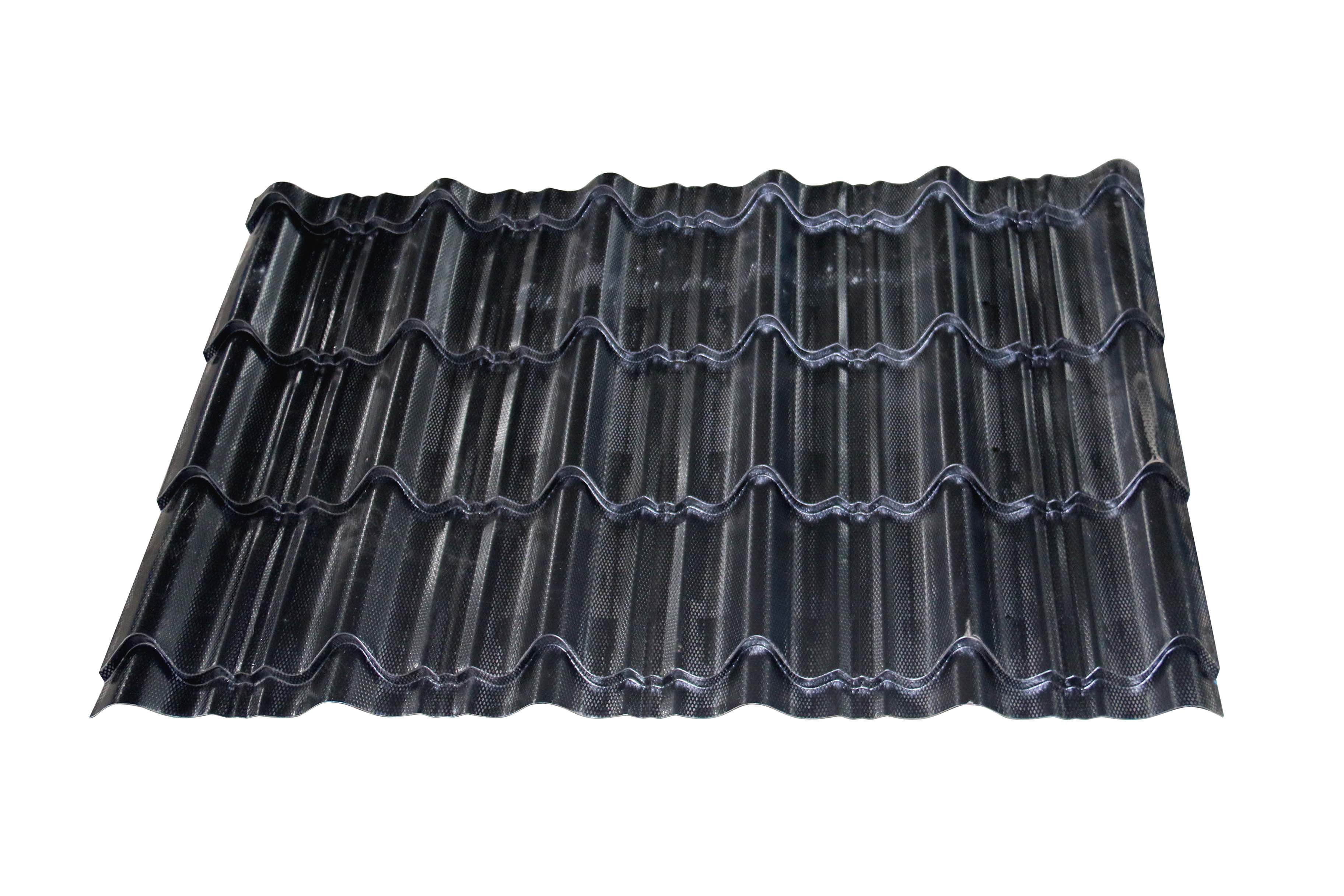

The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:1200mm
Material thickness:0.3-0.6mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX1004
Voltage requirement: 380v60hz3p
Working speed:2-4m/min

3. Machine composition

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Control System(PLC)	set	1
4	Pressing System	set	1
5	Cutting System	set	1
6	Output Table	set	1

4. Main parameters

Model number	Manufacturing Colored Glazed Steel Roof Clay Tile Double Roll Forming Making Panel Machine
Rolled material	0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1000mm
Feeding width	1250mm
Forming steps	16 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	80mm
Main motor power	5.5 kw
Pump power	4 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine, 1 set of computer control cabinet, 1 set of hydraulic System,1 set of cutting mechanism,1 set of counter, 1 set of output table
Payment terms	cash,T/T,L/C.
Delivery time	30 working days
